HVOF 6805
50% Tungsten Carbide,
50% Nickel-Chromium-Silicon-Boron:
A Self-Fluxing Mechanical Alloyed Powder
Description:
HVOF 6805 is a tungsten carbide self-fluxing nickel-chromium-silicon-boron mechanical alloyed composite powder. Coatings produced by the
HVOF process are very dense, well bonded, and smooth. Due to the high integrity of the overlay, the coating may be left as sprayed or can be traditionally fused (heat treated) to improve coating properties. Fusion of the coating results in very low coating shrinkage, minimal part distortion, high impact resistance, metallurgical bonding and exceptionally smooth, even coating thickness, when properly applied. Often, parts can be coated to near-finish requirements, unlike common spray and fuse composites of similar chemistry. The powder has very fine grains (1-7 micron), which also have been observed to produce higher wear resistance over traditional spray and fuse composites in many applications. The matrix composition is similar to Deloro™ 50, which has a hardness value of approximately 50 Rc.

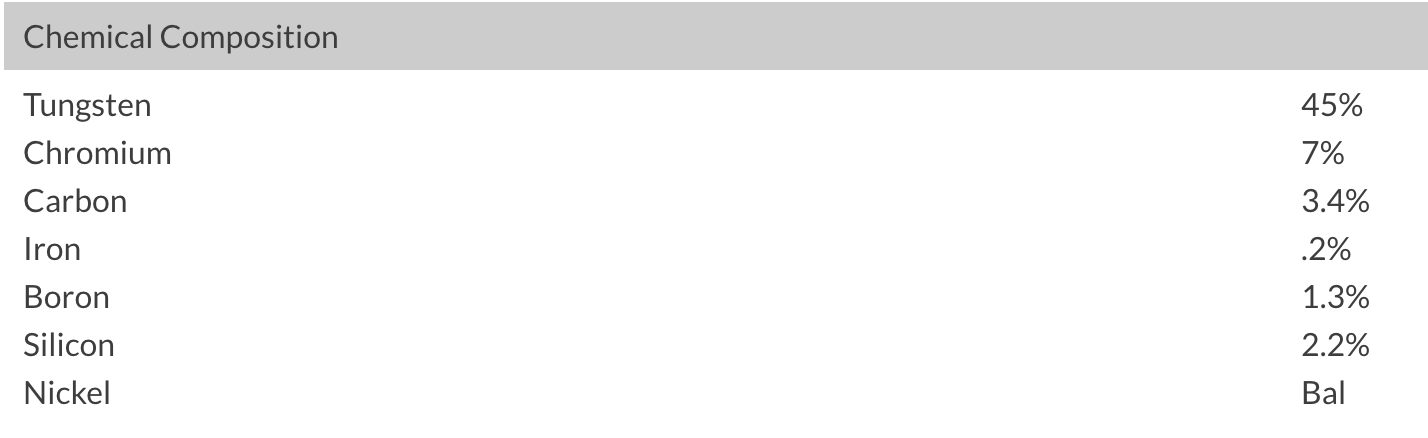

Click Image to enlarge:
COATING CHARACTERISTICS
Thickness Limitations, Unknown
Estimated Hardness Range:
As Sprayed 52-55 Rc
Fused 62-65 Rc
Learn more about HVOF Coating.
